Floorplan

Next Gen

Grange 32

29 31 32
4
3
1
3
2
11m

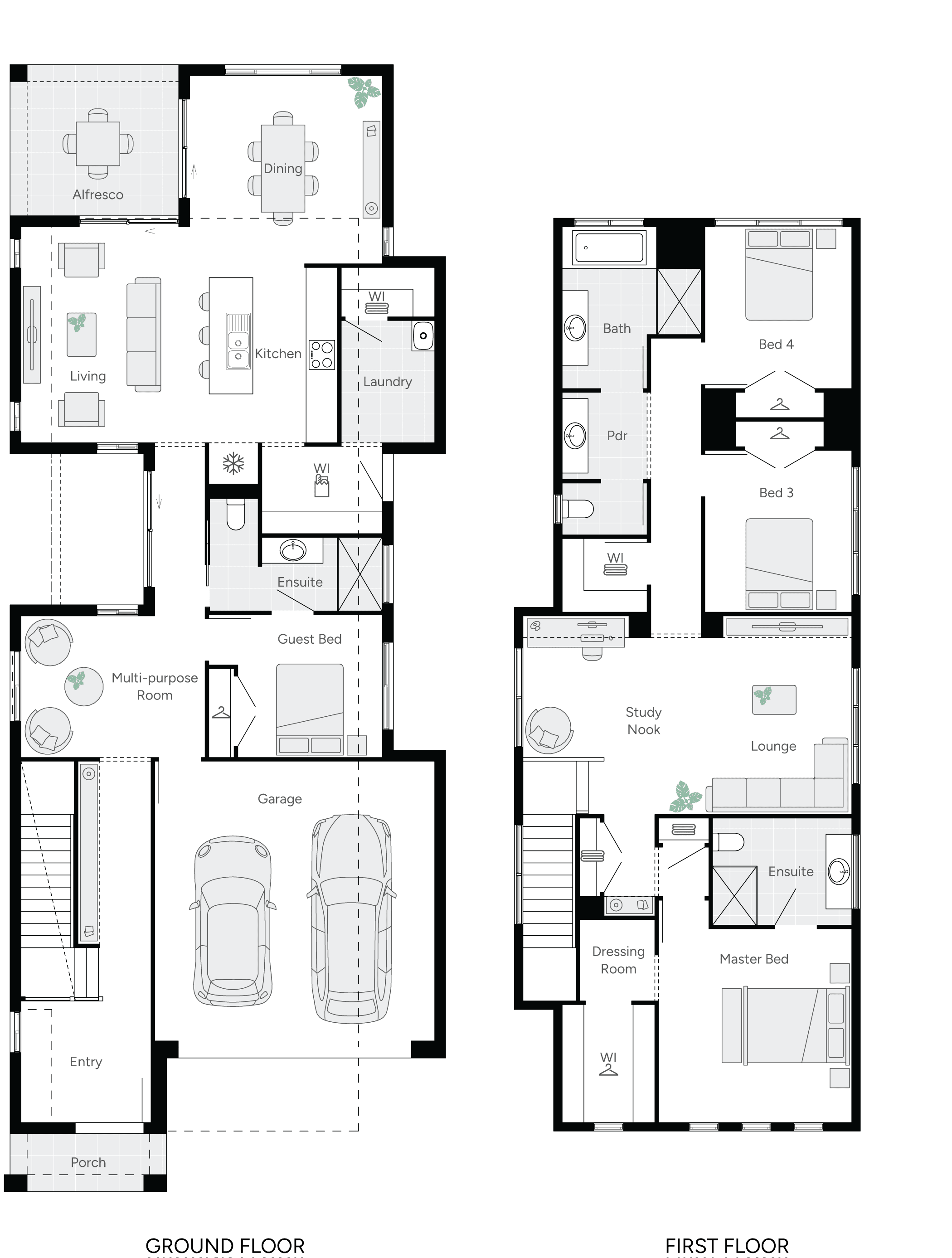

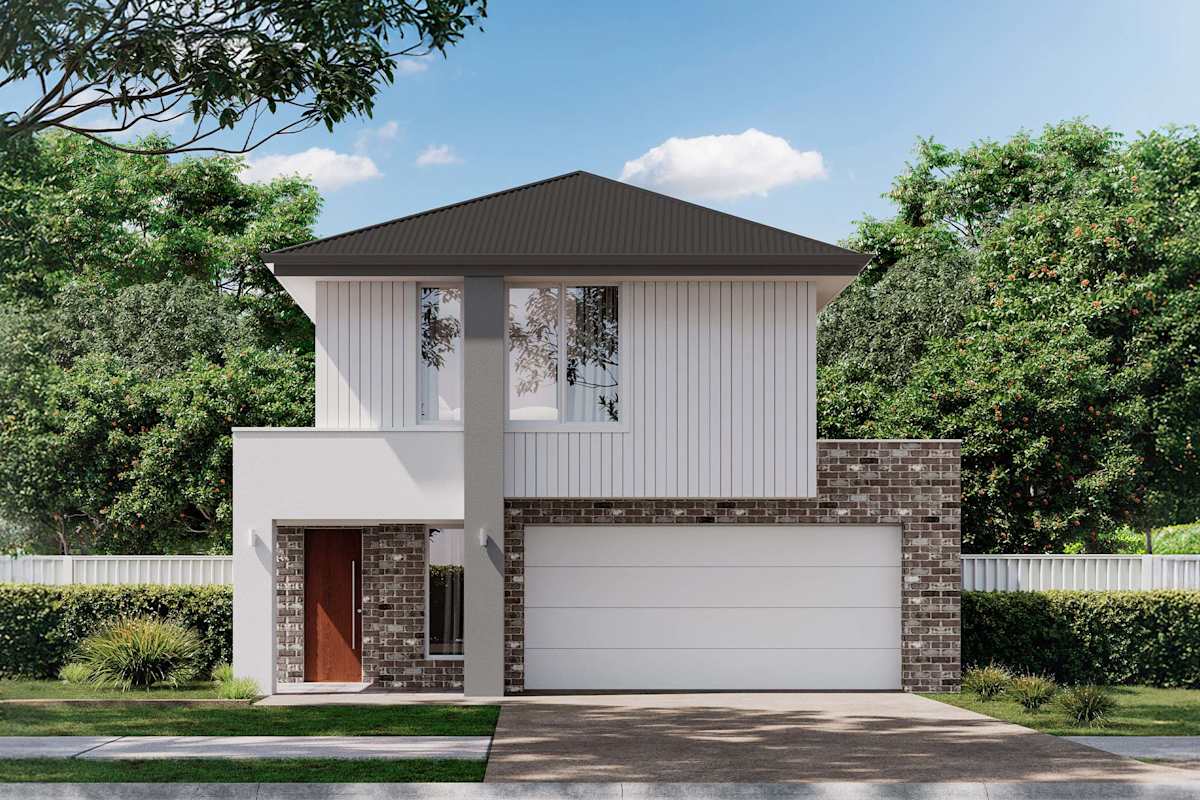

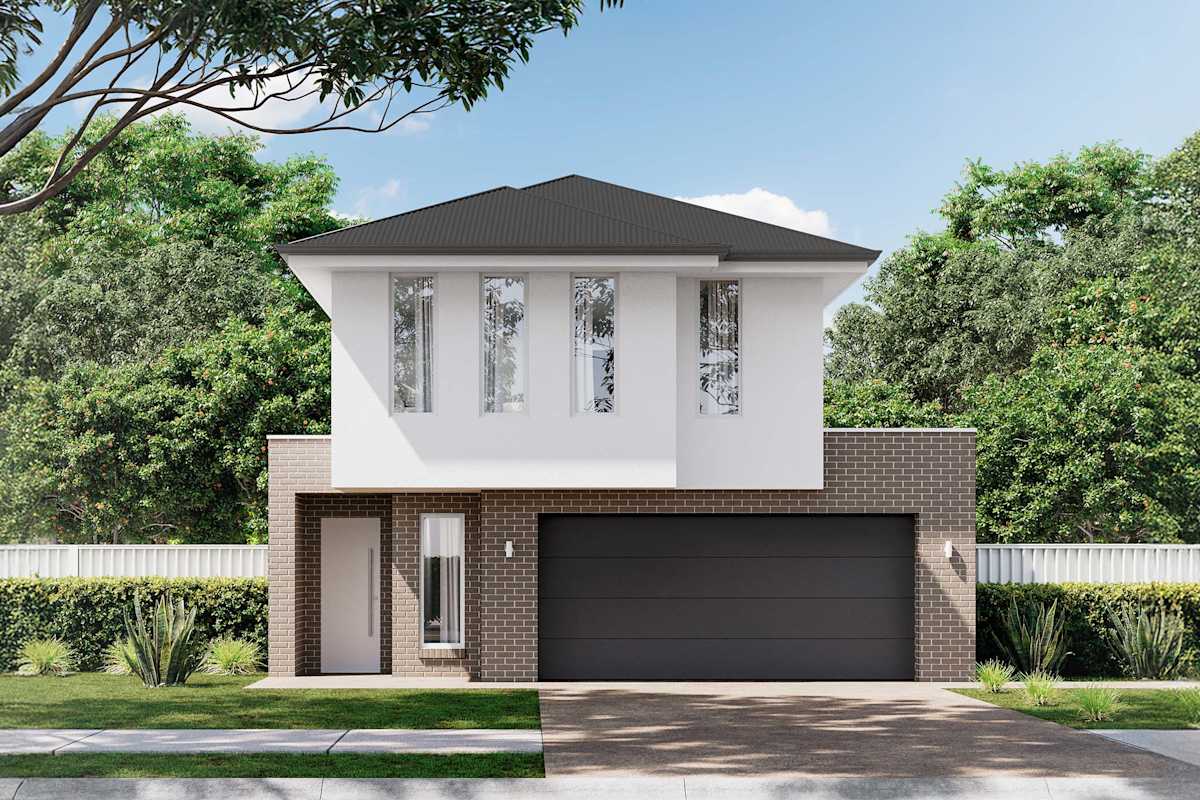

Grange Four Double Storey House Floor Plan
Next Gen

Grange 32

29 31 32
4
3
1
3
2
11m
House Dimensions
House Width: 9m House Depth: 23.3m Total: 299.7m²
Floorplan Options
Room Dimensions
Living
3.5m x 4.5m
Dining
4m x 3.9m
Main Bedroom
4m x 4m
Guest Bedroom
3m x 3m
Bedroom 3
3m x 3.3m
Bedroom 4
3m x 3.3m
Lounge
4.2m x 4.1m
Multi Purpose
3.8m x 2.9m
Study Nook
1.4m x 4.6m
Double Garage
5.8m x 5.8m
Alfresco
3.5m x 3.1m

Inclusions

Warranty & Service

  • Structural Warranty: 25-year ‘Owner transferable’ warranty.
  • Frame warranty: 50-year TrueCore structural warranty on Steel frames.
  • Service period: 3-month maintenance period.

Exterior

  • Framing: Supaloc© steel wall frames & trusses made from TrueCore® steel.
  • Cladding: Bricks from Urban One, Symmetry or Everyday Life ranges OR James Hardie Stria, Linea, or Axon cladding (where applicable)
  • Roof: Colorbond® 25° Custom Orb profile with whirly bird ventilator
  • Gutter & Fascia: Colorbond® OGE® gutter & Novaline® fascia
  • Garage Door: One sectional panelift door to the front including remote
  • Insulation: R2.0 insulation to the external walls and R5.0 Glasswool Batts to living & garage ceilings.
  • Entrance Door: ‘Urban’ entrance door with Tradepro Tristan lever set
  • Windows: Aluminium sliding windows throughout with powder coat finish
  • Sliding Doors: Aluminium sliding door to living area and laundry with powder coat finish Sliding Patio double cylinder deadlock

Living

  • Ceiling Heights: 2400mm high ceilings throughout
  • Internal Doors: Flush panel doors with chrome wall stops throughout.
  • Door Handles: Tradepro Tristan passage lever sets to internal doors.
  • Cornice: 55mm ‘Cove’ plasterboard to living, garage & alfresco areas
  • Skirting & architraves: ‘Square Dressed’ 67 x 18mm primed MDF
  • Paint: Taubmans pure performance matt 2 coat system to walls. 2 coats of ceiling white flat acrylic to ceilings. Taubmans enamel gloss to skirting & architraves
  • Robes: Walk in Robe to master bedroom with shelf and hanging rail Built in Robes to remaining bedrooms

Kitchen

  • Sink & Tapware: Franke Flash double bowl stainless steel sink and Posh Bristol MK2 sink mixer.
  • Appliances: Fisher & Paykel 600mm stainless steel gas cooktop, under bench electric oven and canopy rangehood
  • Benchtops: 600mm deep laminate benchtops with square or post-form edge profile to cook run & 900mm deep to island with colour choices available from builders’ range
  • Splash back: Tiled splash back with a selection of tiles from builder’s range
  • Joinery: Under bench cabinets with stylish handle options and colour choices available from builders’ range (Soft close hinges to doors)
  • Pantry: Up to 900mm x 600mm pantry cupboard (design specific)
  • Drawers: 1 bank or 4 Innotech Atira drawers with soft close adapter
  • Provisions: Dishwasher provision in base cabinets.

Laundry

  • Tapware: Posh Bristol MK2 sink mixer
  • Trough: El Trade 40L slim tub and cabinet
  • Door: 2115 aluminium sliding door to laundry with powder coat finish with Sliding Patio double cylinder deadlock

Bathroom & Ensuite

  • Vanity Basins: Base Vanity basin with chrome pop up waste
  • Bath: Base Acrylic bath with chrome pop up waste
  • Toilet: Posh Domaine close coupled toilet suite with soft close seat
  • Tapware: Posh Bristol MK 2 mixers to bath & showers and single mixer to basins Posh Solus 210mm wall mounted bath spout
  • Accessories: Posh Solus double towel rail, toilet roll holder & hand towel ring to each bathroom
  • Joinery: Laminate benchtops with square or post-form edge profile to bathroom Up to 1500mm wide cabinet with soft close hinges to doors to each bathroom with colour choices available from builders’ range
  • Shower: 2100mm high semi-frameless clear toughened shower screen with chrome strip drain.
  • Shower head/rail: Posh Solus MK3 HI rise shower or Posh Solus MK3 rail shower
  • Mirrors: Up to 1500mm wide x 900mm high mirror to each bathroom. Up to 2000mm wide x 900mm high mirror to powder room or 3-way bathroom
  • Tiling: Standard ceramic tiles to be selected from ‘Next Gen’ range Tile sizes up to 450mm x 450mm to walls & floors of wet areas. Skirting tile to separate vanity, powder rooms, laundry, and WC. 2100mm high tiling to shower & 1200 mm high to bath surround. Skirting tile to remainder of bathroom & ensuite. Chrome, white or black tile trim to finish.

Electrical & Lighting

  • HWS: Rheem Metro 26L gas hot water service with recess box
  • Switch plates: Clipsal Iconic Vivid White cover plates & switch plates
  • Power points: Single & double power points as per floorplan 3 external power points for rainwater tank, HWS & general use
  • Data & Telecommunications: One television aerial connection point and One telephone connection point
  • Exhaust Fans: 1 exhaust fan to each bathroom
  • Smoke Detectors: Up to 2 hardwired smoke detectors
  • Lighting: Batten mounted light points as per floorplan

Site Preparation & Footings

  • Base Footings: 300mm high Biax slab system.
  • External Concrete: Natural concrete finish to porch, verandah, alfresco & carport.
  • Soil Removal: All soil removal from site cut excavations up to 300mm cut & fill.

General Inclusions

  • Preliminaries: Working drawings, Energy Efficiency Rating (EER) assessment, SA Water Corporation sewer and mains water connection fee, Construction Industry Training Board (CITB) levy
  • Council: Council planning and building rules consent application fees
  • Engineering: Engineer’s full construction report
  • Insurance: Homeowners warranty insurance
  • Site Inspections: Site inspection prior to payment of Acceptance Fee
  • Sewer: Allowance of up to forty-five (45) meters
  • Mains Water supply: Allowance of up to eight (8) meters
  • Rainwater provision: The builder will provide a separate water run to one (1) toilet and laundry to external rainwater loop on external wall. Supply, installations, and connections to rainwater tank by owner after handover.
  • Electrical supply: Allowance of up to thirteen (13) meters
  • Telecommunications: Allowance of up to thirteen (13) meters
  • Gas Service: Allowance of up to thirteen (13) meters

NCC 2022 Inclusions (if applicable)

  • Entrance Door: 920mm wide
  • Internal Doors: 870mm wide (excluding linen/broom/double doors)
  • Ensuite Shower: Clear toughened frameless shower screen with stainless steel channel strip drain & square chrome floor waste to centre of floor outside shower area (strip drain to all other showers with standard semi frameless screen)
  • Internal Access Garage Door: Threshold transition plate
  • In-wall Reinforcing: Blocking to wall locations in wet areas as per NCC requirements for future grab rails.
  • Exhaust / Rangehood: Ducting to atmosphere
